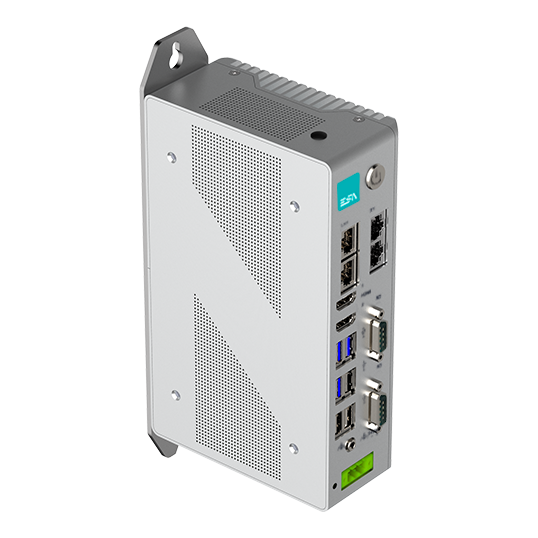

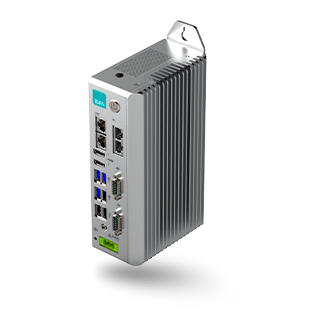

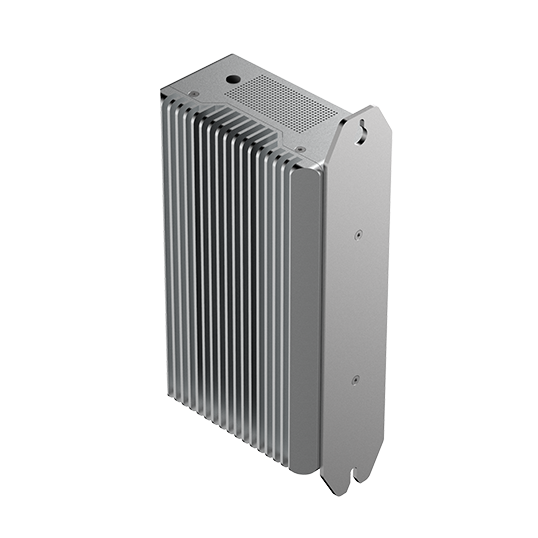

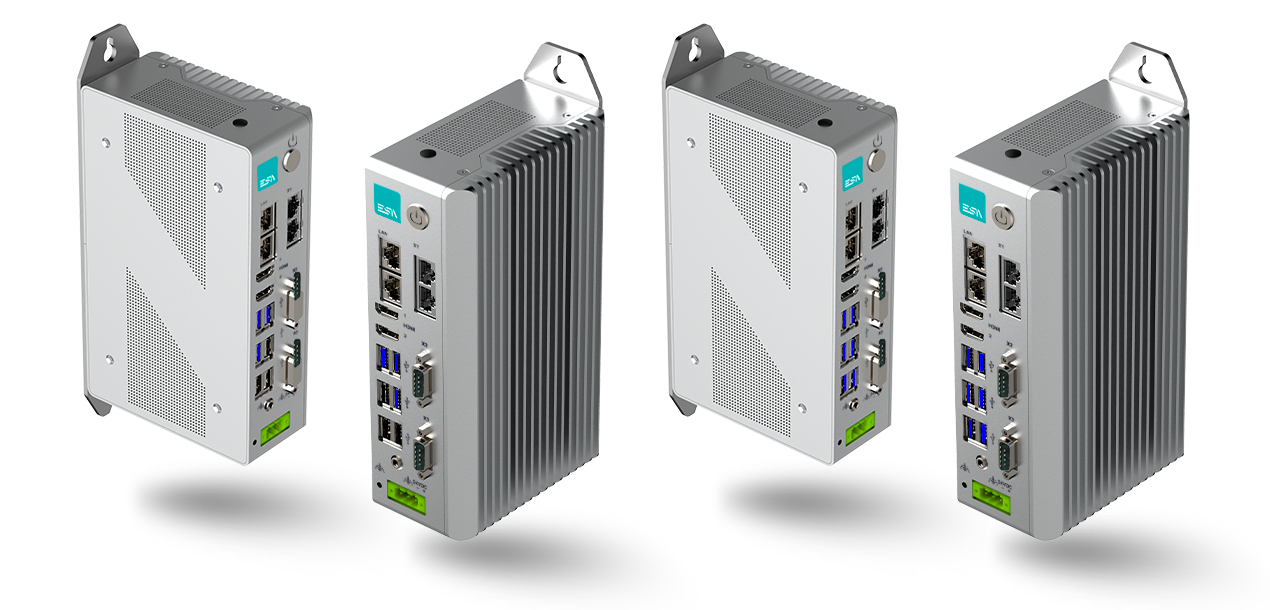

| LUMIABOOK | |
|---|---|
| CPU | Celeron Quad Core J6412 – 2,0 (2,6) GHz Intel Core i3-1115G4 1,7 (4,1) GHz |
| Intel Core i7-1165G7 2,8 (4,8) GHz | |
| Memory | 8G, 16G, 32G DDR4 3200MHz |
| Storage | 128G, 256GB, 512GB,1TB SSD M.2 NVME 2280 |
| TPM | TPM2.0 |
| System | Windows 10 LTSC 2021 / Linux |
| Power switch | Yes (front panel with light) |
| Ethernet port | J6412 4 x Gb LAN Chip |
| i3-1115/i7-1165 3x Gb LAN Chip | |
| COM Port | 2xRS232 |
| USB | J6412 3xUSB3.0 + 3xUSB2.0 TypeA i3-1115/i7-1165 6xUSB3.0 TypeA |
| Video port | 2x HDMI |
| Audio | Line out + MIC in 2in1 Jack connector |
| Power supply (V DC) | 12-32VDc |
| Operating Temperature (°C) | 1 … + 50 °C |
| Storage Temperature (°C) | -20 … + 65 °C |
| Humidity | <90% (No condensation) |
| Housing material | Aluminum alloy + steel |
| Degree of protection | IP20 |
| Installation method | Wall Mount/ DIN Rail |
| Power (W) | 25W |
| Outer frame size(W/H/L) (mm) | 59,8x200x119,5 |
| Weight (Kg) | 2 |
| Certification | CE, UL in progress |
| Code | Description | ||||
|---|---|---|---|---|---|

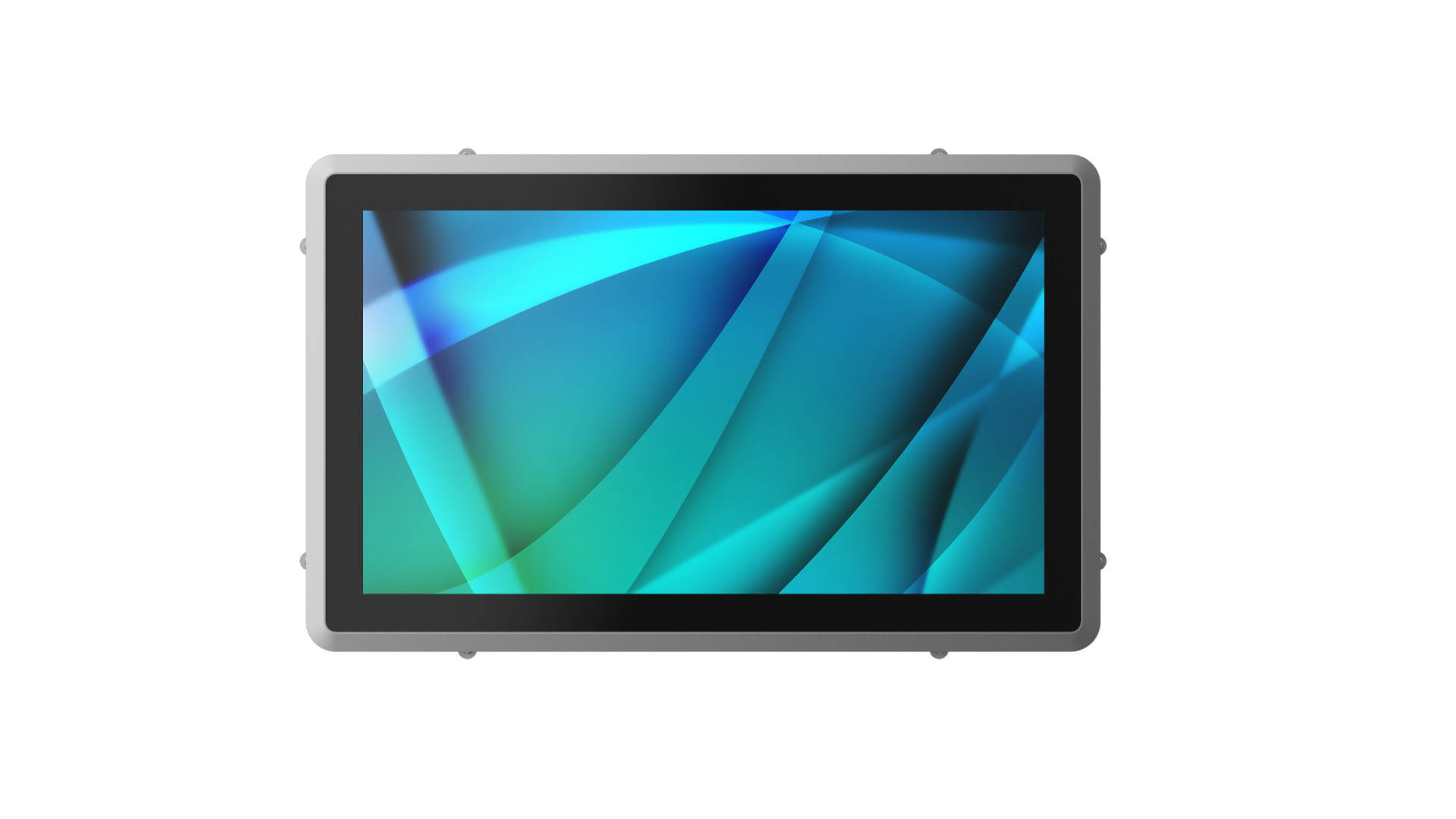

| Lumia210xxxxxxxx | 10.1”, With Fan, Upto 32 GB RAM, 1TB SSD, RAID 0/1, Win 10/11 IoT | ||||
| Lumia215xxxxxxxx | 15.6”, With Fan, Upto 32 GB RAM, 1TB SSD, RAID 0/1, Win 10/11 IoT | ||||
| Lumia222xxxxxxxx | 21.5”, With Fan, Upto 32 GB RAM, 1TB SSD, RAID 0/1, Win 10/11 IoT | ||||
| Lumia227xxxxxxxx | 27”, With Fan, Upto 32 GB RAM, 1TB SSD, RAID 0/1, Win 10/11 IoT | ||||
