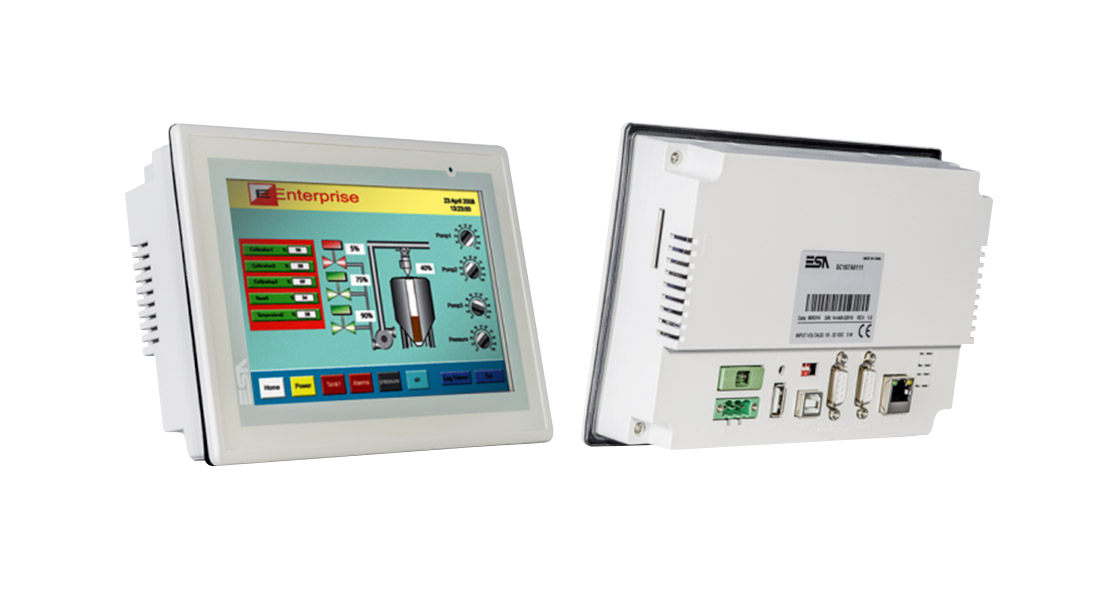

SC HMI

Entry-level HMI with sturdy ABS plastic chassis and TRUE-FLAT touchscreen
Available in 7” (SC107, SC207) and 10.1” (SC110, SC210) wide display sizes with white LED backlight
Offers advanced connectivity for flexible integration
Configured using SmartClick software for intuitive setup
Supports recipes, trends, data logs, alarms, and user management

+91 8866687234

Contact Now + Inquire

Product parameters Order Codes Relevant information

Feature	SC107	SC207	SC110	SC210
Display Size	7” Wide	7” Wide	10.1”	10.1”
Display Technology	TFT
Display Colors	65,536
Display Backlight	LED
Resolution (pixel)	800 x 480	800 x 480	1024 x 600	1024 x 600
Backlight life (Hours)	30K
Processor	ARM
RAM	64 MB	32 MB	64 MB	64 MB
Flash	64 MB
First Serial Port	Port 1 (RS232/RS485/COM0)	Port 1 (RS232/485/MP)	Port 1 (RS232/RS485/COM0)	Port 1 (RS232/485/MP)
Second Serial Port	Port 2 (RS232/RS485/COM0)		Port 2 (RS232/RS485/COM0)
USB Port Host	1 x v1.1
USB Port Device	1 x v1.1
Cardbus Slot	1 x Secure Digital/MMC
Ethernet	1 x 10/100 Mb
Chassis	ABS Plastic
Hardware Clock	Yes
Clock Battery	Battery (min. durability 5 yrs)		Supercapacitor 72h
Power Supply (Vdc)	18–32
Consumption (W)	5	5	8	8
Operating Temperature (°C)	-10 ... +50 (non condensing)
Storage Temperature (°C)	-20 ... +65
Humidity	<85% (non condensing)
External Dimensions (W/H/D mm)	198.8 x 137.8 x 40.3	202 x 142 x 40	280 x 190 x 37.5
Cut-Out (mm)	190.2 x 129.2	194 x 134	271 x 181
